Features
- Excellent Light transmission
- UV Protection
- Prevents Condensation
- Thermal Insulation
- Acoustic Insulation
- Extreme high impact resistance
Benefits
- Energy Savings
- Recyclable
- Contributes to obtain Leed Credits
| Thickness | Weight (lb/ft2) | Weight (g/m2) | Light transmission crystal | Sound reduction index | Cold forming radius | Standard colors | ||
|---|---|---|---|---|---|---|---|---|
Easyroof PA  |  | 30 mm | 0.63 | 3100 | 52% | 21 | 220 in | Crystal White |
| Physical Properties | UNIT | VALUE |
|---|---|---|

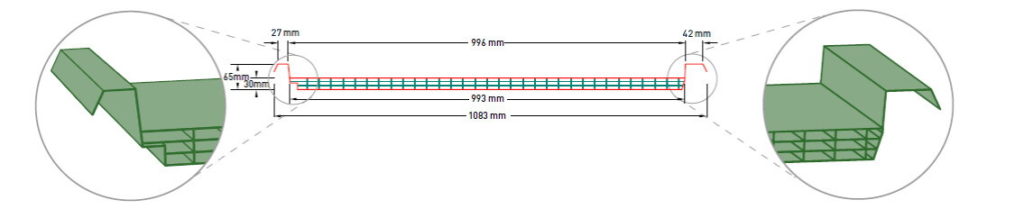

| Width | m | .993 |
| Length | m | to 12.20 |
| Thick | mm | 30 |
| Number of walls | 4 | |
| Weight | kg/m2 | 3.1 |
| Coefficient of solar heat gain | SHGC | 0.36 |
| "U" Values | W/m2 0K | 1.59 |
| Soundproofing | dB | 21 |
| ASTM Impact D-5628-95 J | J | 0.83 |
| Thermal Expansion | mm/m ºC | 0.0654 |
| Working temperature range | ºC | -40 to 120 |
| Bending radius | m | 5.6 |
| Light transmission - Glass - Opaline | % % | 52 35 |
| UV Protection | One side | |
| Warranty | years | 10 |
| Maximum distance for supports | ||
|---|---|---|
| Distance between supports | Load | |
| m | Pressure | Suction |
| 1.5 | 2100 Pa | Max. 1400 Pa |
| 1.75 | 1600 Pa | |
| 2 | 1250 Pa | |
| 2.25 | 950 Pa | |
| 2.5 | 750 Pa | |
| Flammability | ||
|---|---|---|
| Test | Classification | |
| ASTM E84-01 | Class A-I (NFPA, UBC) | |
| ASTM E84-01 | Low smoke density (UBC Standard no. 26-5) | |
| ASTM E84-01 | Flame retardant (Classification CC1) | |
| ASTM E84-01 | Meets the standard ignition temperature (UBC standard N. 26-6) | |
